SKF 1200 ETN9 -1214 ETN9 SKF Self Aligning Ball Bearing

Description

Self-Aligning Double Row Ball Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection. The concave raceway of the outer ring in combination with two rows of balls operate over a wide range of contact angles. Furthermore it aligns itself correctly with the shaft and assembly without causing undue stress on the rest of the bearing assembly.
Standard Self-Aligning Double Row Ball Bearings are produced with straight bores; however, tapered bores are available upon request. Noteworthy is that the self-aligning ball bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds. Furthermore, the design allows for easy mounting and dismounting.

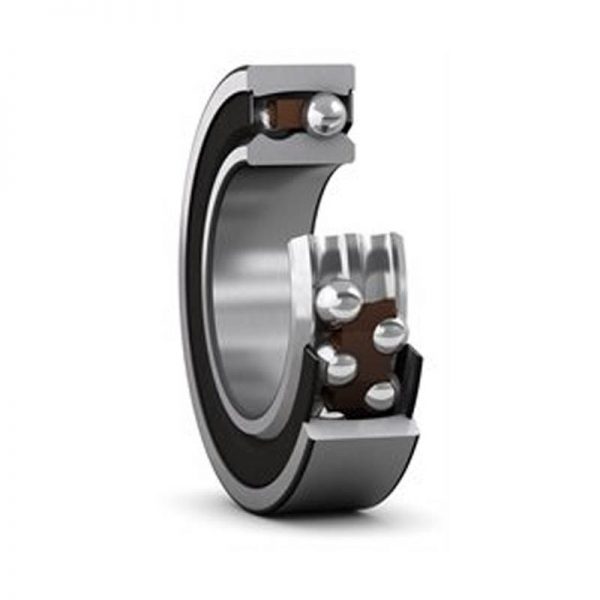

In a self-aligning bearing, the inner ring has two raceways and the outer ring has a single spherical raceway with its center of curvature coincident with the bearing axis. This allows the axis of the inner ring, balls and cage to deflect around the bearing center to automatically correct misalignment caused by housing and shaft machining or installation error. A self-aligning bearing is recommended when the alignment of the shaft and housing is difficult or when the shaft may bend during operation. Brda notes that similar to deep groove ball bearings, most self-aligning ball are for general use. Depending on the series, most self-aligning bearings can be interchanged with standard ball bearing assemblies. (6200 and 6300 have direct interchanges with the 1200 and 1300 series).
